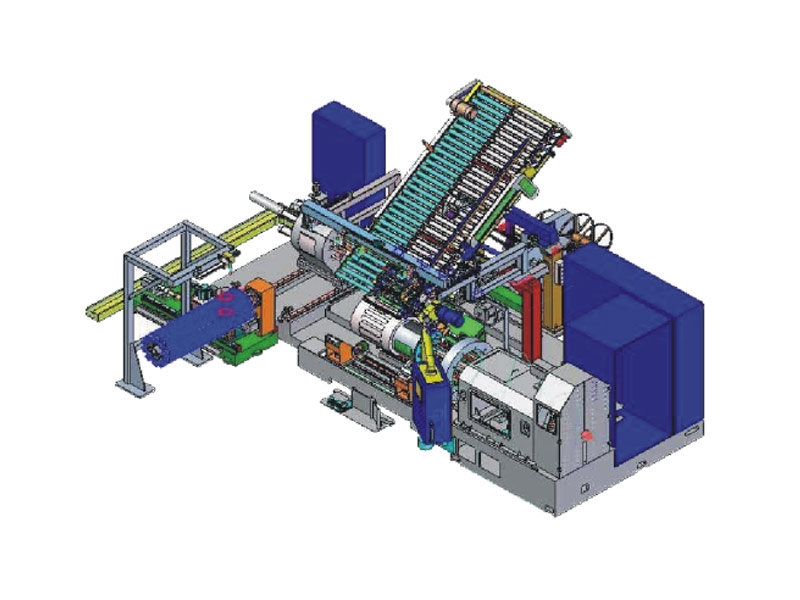

| MODEL |
LB1516H |
TB20H |
TB24H |
OR2430H |
| Applicable Tire |
LT、ID、AG |
TB、ID、AG |
TB、ID、AG |
TB、ID、AG、OTR |
| Bead Diameter |
15”/16” |
20” |
24” |
24”/25”/28”/30” |
| Drum Type |
8 Slices Collapse Drum |
| Building Method |
Single bead / Dual Beads / Triple Beads Band Building Method |
| Building Width |
MIN350 ~ MAX620mm |
MIN445 ~ MAX680mm |
MIN445 ~ MAX680mm |
MIN570 ~ MAX1080mm |
| Height of Drum Center above Floor |
975mm |
925mm |
| Max.Width of Band |
Max.1100mm |
Max.1300mm |
Max.1300mm |
Max.1500mm |
| Main Shaft Motor |
7kw Servo Motor |
11.7kw Servo Motor |
12.7kw Servo Motor |
| Main Shaft Revolution |
130 / 70 / 25 r.p.m |
Max.100 r.p.m |
| Under Stitcher Motor |
AC motor |
| Turn down Stitccher Motor |
AC motor |
| Band Transfer Ring Motor |
Servo Motor |
| Band Inserter Auto Expand/Collapse motor |
Servo Motor |
| Band Inserter Forward/Backward Motor |
Servo Motor |
| Required Air Pressure |
6kg/cm² |
| Power |
According to customer's supply source ( )φ–( )V/( )V-50 / 60Hz |
| Electronic control system |
PLC CONTROL Manual / Auto |
| Dimension |
6900(L)x3900(w)x2575(H) mm |
| Building rate |
About 360 sec/pc |
