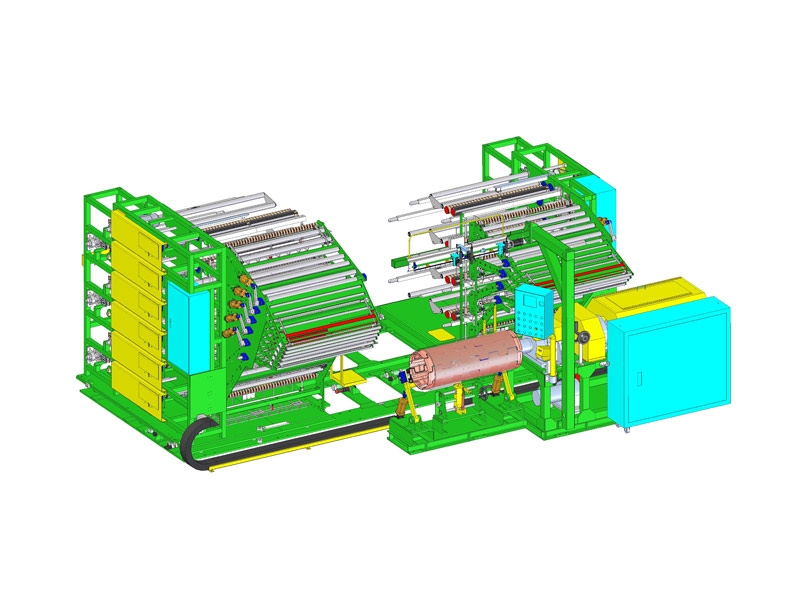

SERVICER MOVING TYPE
.jpg "SERVICER MOVING TYPE")
Product Introduction
| MODEL | BB1516E / BB1516F | BB2024E / BB2024F |
| Applicable Tire | Band | |
| Band Building | 15” ~ 16” | 20” ~ 24” |
| Band Building Drum type | 8 Section sleeve type drum | |
| Building Width | MAX 1000mm | |
| Height of Drum center above Floor | 920mm | |
| Driving type for Band Building Drum | By Cylinder | |
| Electronic control system | PLC Control Manul / Auto | |
| Dimension | 4250(L)x5750(w)x2535(H) mm | |
| Servicer Type | (4P+6P) Moving type | |
