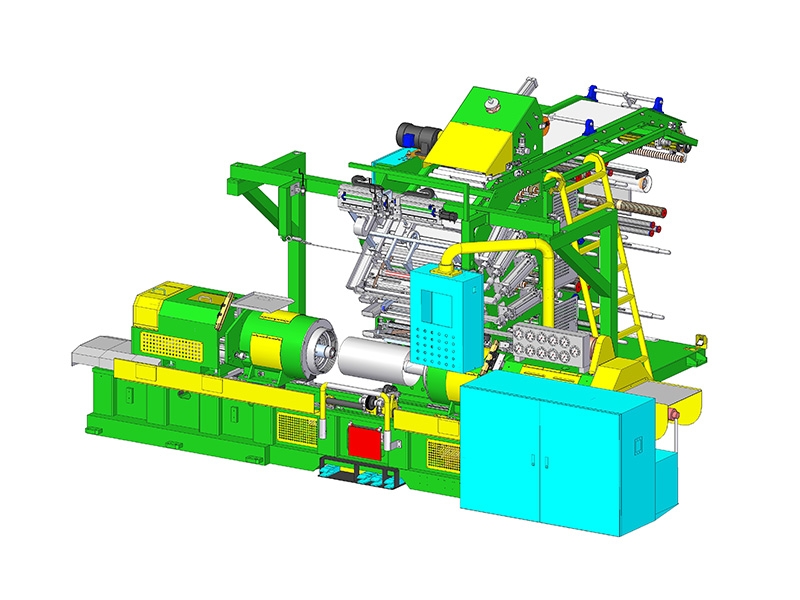

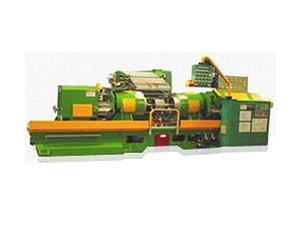

B0812
Product Introduction
| Model | B0812 |
| Applicable Tire | WB, ATV, SC, UTL, FL, ID |
| Bead Diameter | 8” ~ 12” |
| Drum type | 12 Slices sliding type drum |
| Building Method | Single Bead |
| Building Width | MIN160 ~ MAX600mm |
| Height of Drum center above Floor | 900mm |
| Main Shaft Motor | AC 3HP x 6P |
| Main Shaft Revolution | 240 / 137 / 30 r.p.m |
| Under-Stitcher Motor | AC 1/2 HP x 4P |
| Required Air Pressure | 6kg/cm² |
| Power | According to customer's supply source ( )φ–( )V/( )V-50 / 60Hz |
| Electronic Control System | PLC CONTROL Manual / Auto |
| Dimension | 5200(L) x 1735(w) x 17500(H) mm |
| Building rate | ID tire : 170 sec / pc |
