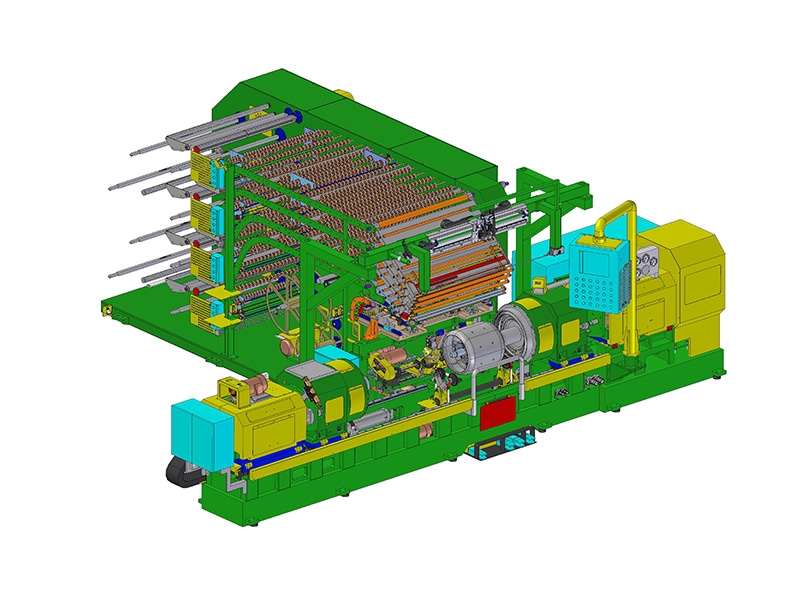

AT 0812 HR
Product Introduction
| Model | AT0812 HR |
| Applicable Tire | ATV , AG |
| Bead Diameter | 8” ~ 12” |
| Drum Type | 12 Slices sliding type drum |
| Building Width | MIN250 ~ MAX700mm |
| Height of Drum center above Floor | 900mm |
| Main Shaft Motor | 5kw servo Motor |
| Main Shaft Revolution | 18~3000 r.p.m |
| Under-Stitcher Motor | AC 1/2 HP x 4P |
| Side-Stitcher Motor | Rotation : AC 1/2 HP x 4P , Traverse : AC 1/4 HP x 4P, Forward / Backward : AC 1/2 HP x 4P |
| Required Air Pressure | 6kg/cm² |
| Power | According to customer's supply source ( )φ–( )V/( )V-50 / 60Hz |
| Electronic Control System | PLC CONTROL Manual / Auto |
| Dimension | 5950(L)x1380(w)x2325(H) mm |
| Building rate | AT Tire : _sec/pc |
