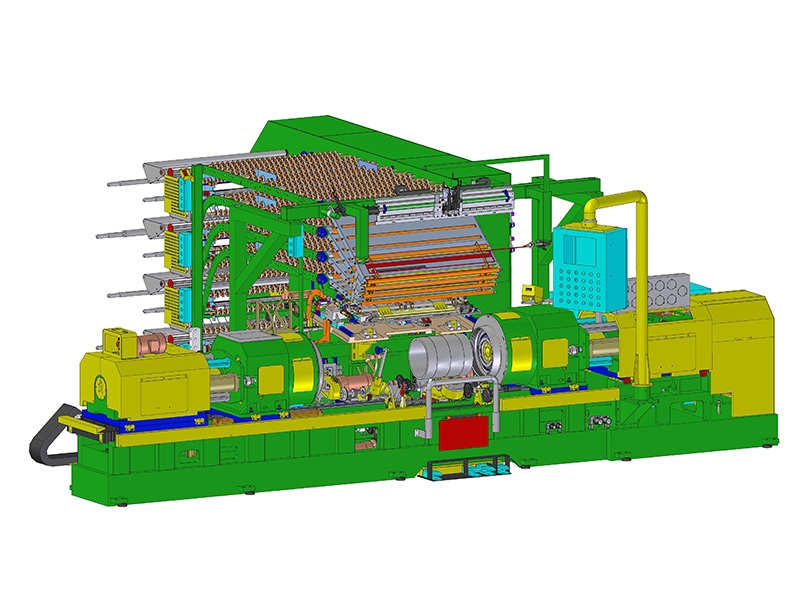

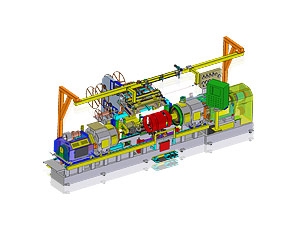

Model : LT1316 HR
Product Description
  • Model : LT1316HR Specialized
  • Applicable For : ATV、 LT
Inquiry
Product Introduction
Model LT1316 HR
Applicable Tire  ATV, LT
Bead Diameter 13” ~ 16”
Drum Type 12 Slices type drum
Building Width MIN240 ~ MAX600mm
Height of Drum center above Floor 900mm
Main Shaft Motor 5kw servo Motor
Main Shaft Revolution 18~3000 r.p.m
Under-Stitcher Motor AC 1/2 HP x 4P
Side-Stitcher Motor Rotation : AC 1/2 HP x 4P ,
Traverse : AC 1/4 HP x 4P,
Forward / Backward : AC 1/2 HP x 4P
Required Air Pressure 6kg/cm²
Power According to customer's supply source
(  )φ–(  )V/(  )V-50 / 60Hz
Electronic Control System PLC CONTROL Manual / Auto
Dimension 5950(L)x1380(w)x2325(H) mm
Building rate AT Tire : _sec/pc
