| Model |

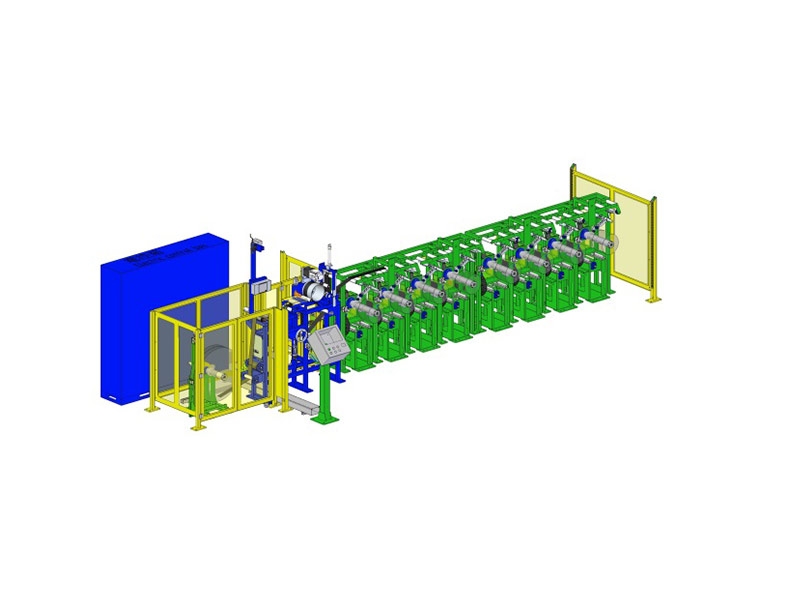

JLB SLITTER |
| Cutting Quantity |
8 PCS |
| Cutting Width |
10mm |
| O.D. of Supply Material Roll |
φ800mm |
| DIA of Empty Supply Material Roll |
φ120mm |
| Width of Supply Material |
80mm |
| O.D. of the Slitted Roll |
φ300mm |
| DIA of Empty Slitted Roll |
φ120mm |
| Length of the Strip Each Roll |
1200 M |
| Width of the Slitted Roll |
450mm |
| Shaft of Supply Material Roll |
□32mm (SQUARE) |
| Speed of Pulling Strength |
Max 70~80M/min |
| Thickness of Strip |
0.8 ~ 1mm |
| Tolerance of Strip (Depends on Cord Parallelism Accuracy) |
±0.5mm |
| Range of trailing device correction |
25mm for Left & Right Side |
| Dimension |
5700(L) * 1100(W) * 2054(H) mm |
