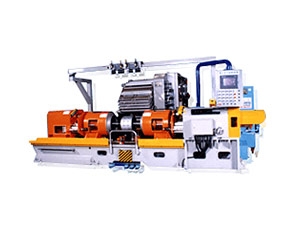

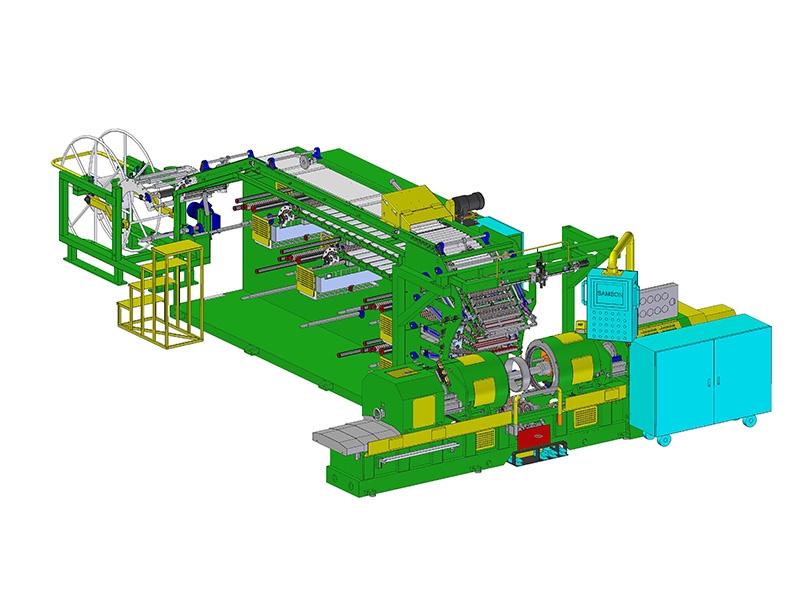

B1721
Product Introduction
| Model | B1721 |
| Applicable Tire | MC、MCH |
| Bead Diameter | 17” ~ 21” |
| Drum Type | 12 Slices bulge type drum (one drum is compitable for 2sizes) |
| Building Width | MIN110 ~ MAX450mm |
| Height of Drum center above Floor | 900mm |
| Main Shaft Motor | AC-3HP x 8P |
| Main Shaft Revolution | 150 / 110 / 30 r.p.m |
| Under-Stitcher Motor | AC 1/2 HP x 4P |
| Required Air Pressure | 6kg/cm² |
| Electronic Control System | PLC CONTROL Manual / Auto |
| Building rate | 100-18 3P MC TIRE : 85 sec / pc 400-18 4P MC TIRE : 151 sec / pc |
| Dimension | 5280(L) x 1400(w) x 1985(H) mm |
