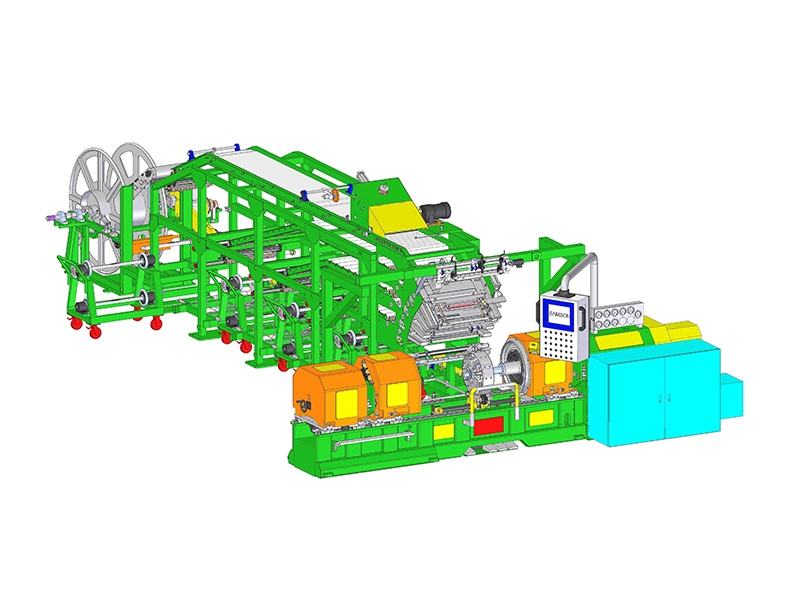

B1519
Product Introduction
| Model | B1519 |
| Applicable Tire | MC / MCH |
| Bead Diameter | 15” ~ 19” |
| Drum Type | 12 Slices sliding type drum (one drum is compitable for 2sizes) |
| Building Width | MIN110 ~ MAX450mm |
| Height of Drum center above Floor | 900mm |
| Main Shaft Motor | AC-3HP x 8P |
| Main Shaft Revolution | 150 / 110 / 30 r.p.m |
| Under-Stitcher Motor | AC 1/2 HP x 4P |
| Required Air Pressure | 6kg/cm² |
| Power | According to customer's supply source ( )φ–( )V/( )V-50 / 60Hz |
| Electronic Control System | PLC CONTROL |
| Dimension | 5280(L) x 1400(w) x 1985(H) mm |
| Building method | Single Bead / Cord Forming |
