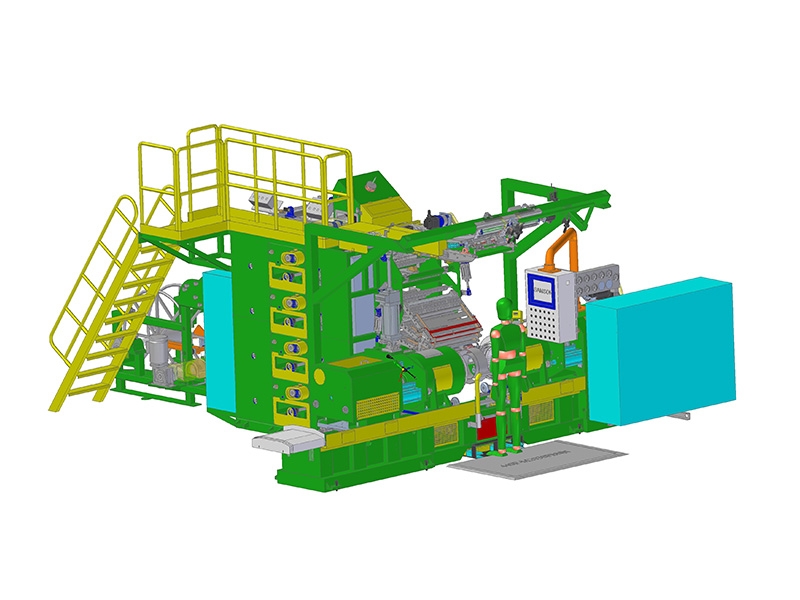

B1216
Product Introduction
| Model | B1216 |
| Applicable Tire | ATV, MC, LT |
| Bead Diameter | 12” ~ 16” |
| Building Method | Single Bead |
| Drum Type | 12 Slices sliding type drum |
| Building Width | MIN240 ~ MAX600mm |
| Height of Drum center above Floor | 920mm |
| Main Shaft Motor | AC-3HP x 8P |
| Main Shaft Revolution | 200 / 120 / 30 r.p.m |
| Under-Stitcher Motor | AC 1/2 HP x 4P |
| Required Air Pressure | 6kg/cm² |
| Power | According to customer's supply source ( )φ–( )V/( )V-50 / 60Hz |
| Electronic Control System | PLC CONTROL Manual / Auto |
| Dimension | 5280(L) x 1790(w) x 1985(H) mm |
| Building rate | LT tire : 240 sec/pc |
