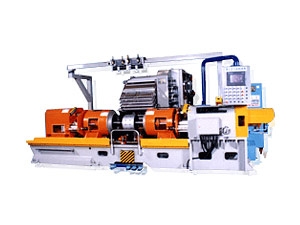

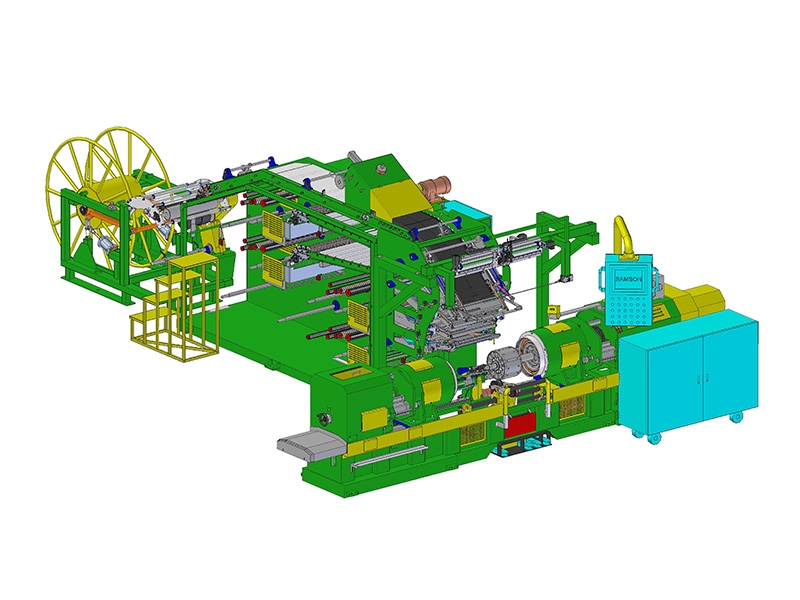

Model : B1014
Product Description
  • Model : B1014
  • Applicable for : ATV / SC
Inquiry
Product Introduction
Model B1014
Applicable Tire  ATV,SC
Bead Diameter 10”~14"
Drum type  12 Slices sliding type drum
Building Metloop Single bead
Building Width Min 160 ~ Max 600mm
Height of Drum center above Floor 920mm
Main Shaft Motor AC -3HPx8P
Drum revolution 200 / 120 / 30 rpm
Under-stitcher motor AC 1/2 HP x 4P
Required air pressure 6kg/cm²
Power According to customer's supply source
(  )φ–(  )V/(  )V-50 / 60Hz
Electronic Control System PLC Control Manual / Auto
Dimension 5280(L)x1790(w)x1985(H) mm
Building rate 50 sec / pcs
