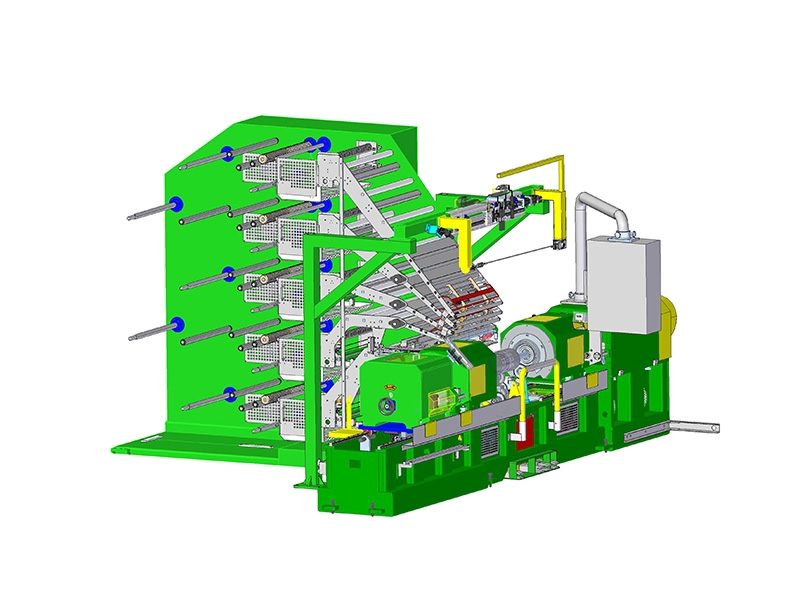

B0407 / B0408
Product Introduction
| Model | B0407 | B0408 |
| Applicable Tire | WB | ATV |
| Bead Diameter | 4" ~ 7" | 4" ~ 8" |
| Building Method | NIN90 ~ MAX450mm | |
| Drum type | 8 Slices slidiing type drum | |
| Building Width | MIN 90 ~ MAX 450mm | |
| Height of Drum center above Floor | 900mm | |
| Main Shaft Motor | AC 3HP x 6P | |
| Main Shaft Revolution | 200 / 120 / 25 r.p.m | |
| Required Air Pressure | 6kg/cm² | |
| Power | According to customer's supply source ( )φ–( )V/( )V-50 / 60Hz |
|
| Electronic Control System | Servo motor CONTROL Manual / Auto | |
| Dimension | 4300(L) x 1130(w) x 1750(H) mm | |
| Weight | 5000kg | |
| Building rate | WB Tire : 50 sec / pc | |
